| İSDEMİR PORT |
| |
 |
| |
Isdemir port is located within territories of iskenderun iron and steel works on iskenderun bay of the eastern mediterranean.It is 18 km away from the highway so called E 5.
OPERATOR COMPANY NAME :
Iskenderun Iron and Steel Works
OPERATOR ADRESS :
Demir Celik Fabrikalari, Payas, Iskenderun-Turkey
PHONE :+90.326.758 40 40 (switchboard)
PORT DIRECTOR :+90.326. 7583080 or 7583380
OPERATOR COMPANY FAX : 0.0.90.326.755 37 59
______________________________________________

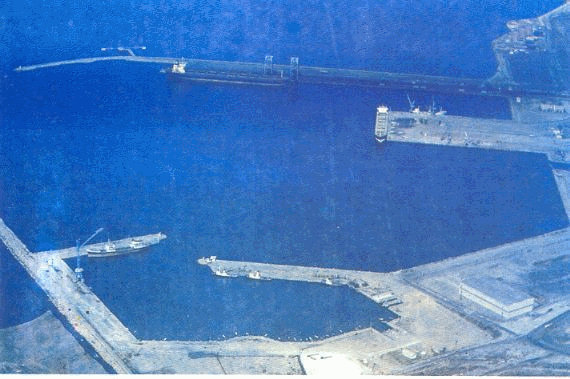

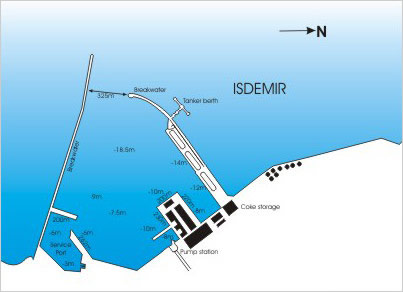

İsdemir Port is situated within the site of Iskenderun Iron and Steel Works on the Iskenderun Bay Eastern Mediterranean. The port is protected by two breakwaters.
LOCATION :
36 11 05 east / 36 43 29 north
LOCATED AT - ANCHORAGE :
36 08 30 east / 36 44 30 north
ADMIRALTY CHART NO :
2185 B.A.
PILOT :
isdemir Pilot vhf chanel 16 / 12
Pls call isdemir pilot prior to 20 miles for berthing or anchorage. manouvering channel 12
UNLOADING DOCK NO : AI ( COAL AND ORE )
Dock Lenght : 500 m
Vessel size : 150.000 DWT
Dock Depth : 18,5 m
Max.vsl draft : 17,5 m
Unloading capacity : abt max 2500 tons/ hour
crane : 2 ( 2 x 1250 ton /hrs)
Air draft : 25 meter
UNLOADING DOCK NO : AB ( COAL AND ORE )
Dock Lenght : 240 m
Vessel size : 50.000 DWT
Dock Depth : 12 m
Max.vsl draft : 11,5 m
Unloading capacity : BULK, abt max 1600 tons/ hour
crane : 4 ( 4 x 400 ton /hrs)
Unloading capacity : G.CARGO, 600 tons/ hour
crane : 4 ( 4 x 150 ton /hrs)
Air draft : 25 meter
UNLOADING DOCK NO : CD (GENERAL CARGO )
Dock Lenght : 220 m
Vessel size : 8.500 DWT
Dock Depth : 8 m
Max.vsl draft : 7,6 m
Unloading capacity : G.CARGO, abt max 300 tons/ hour
crane : 2 ( 2 x 150 ton /hrs
UNLOADING DOCK NO : DE (GENERAL CARGO )
Dock Lenght : 200 m
Vessel size : 35000 DWT
Dock Depth : 10 m
Max.vsl draft : 9,4 m
Unloading capacity : G.CARGO, abt max 140 tons
crane : 1 ( 1 x 140 ton lifting)
UNLOADING DOCK NO : EF (GENERAL CARGO )
Dock Lenght : 185 m
Vessel size : 37.000 DWT
Dock Depth : 10 m
Max.vsl draft : 9,4 m
Unloading capacity : BULK, abt max 900 mt/ph
Unloading capacity : G.Cargo, 450 mt/ph
DOLFIN DOCK NO :
Dock Lenght : 106 m
Vessel size : 60.000 DWT
Dock Depth : 14 m
Max.vsl draft : 13 m
Unloading capacity : Fuel oil,abt 500 mt/ph
BERTH ....... lenght -...... Draft
wharf no AI : 500 meter / 16,40 m (ore,coal berth )
wharf no AB : 240 meter / 11,50 m (ore,coal,all cargo )
wharf no CD : 220 meter / .7,60 m ( all cargo )
wharf no DE : 200 meter / .9,40 m ( all cargo )
wharf no EF : 185 meter / .9,40 m ( all cargo )
wharf no FG : .90 meter / .5,50 m ( all cargo )
Dolphin OIL. : 106 meter /13,00 m
WATER DENSTIY:
1025
Storage Area Open: 120,000 m2,
Warehouse : 10,500 m2,
Fuel oil tanks : 55.000 mt( 9 Tank x 5000 mt and 1 tank 10.000 mt )
BERTHING/UNBERTHING :
Large vessels (over 100,000 d.w.t.) and tankers are not allowed to enter during hours of darknes.If vessel arrives with over 100,000 tones cargo and berthing will be
4 tugboat and unberthing 3 tugboat.Daylight berthing fm 0600 to sunset.
PORT STATE CONTROL:
PORT STATE CONTROL COMMENCED IN ISDEMIR PORT.
BERTHING/UNBERTHING : Only daylight,
BREAKWATER : ( Yes )
FRESH WATER AVAILABLE : ( Yes ) each ton 5 usd.
STRAIGHT TIME WORKING HOURS : 24 hrs
GARBAGE DISPOSAL : service available
ADANA AIRPORT TO PORT : Distance abt 120 km
ISDEMIR PORT:
PRESENT SECURITY LEVEL IS ONE (1)
ISPS OFFICER : MUSTAFA AKARCA
PHONE : +90.326.758 40 40 (switchboard)
PHONE : +90.326.758 53 80
FAX ... :+90.326.755 37 59
MOBIL :+90.536-638 36 58
EMAIL : makarca@isdemir.com.tr |
| |
 |
|
